Detail
Material :
Carbon Steel- Zinc Plated
Grade 5 Clamping Bolts
Application :

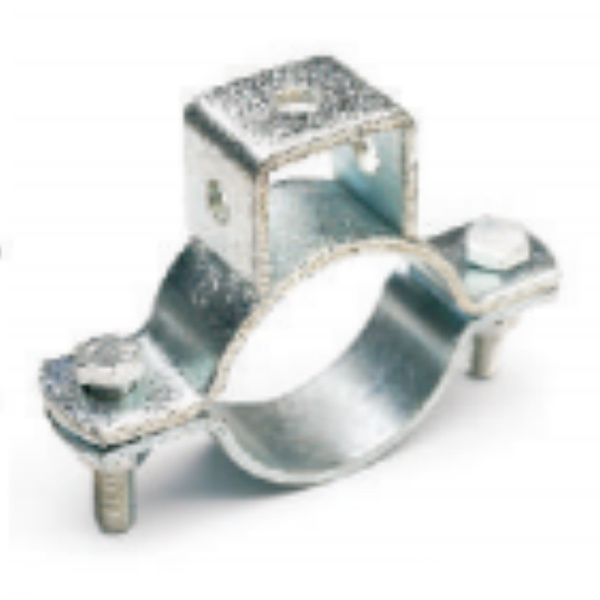

Designed for combined with the “bracing pipe” and
Installation :
Attach previous page structural attachment fitting.Place the assembly around the pipe to be braced, positioning welded clevis on top of the pipe, then tighten clamping bolts and nuts finger tight.
Adjust the brace element to the desired angle then tighten the supplied fastener to lock the structural attachment fitting,securely in position then evenly torque clamping bolts until hex portion of clamping nuts break off.
Ordering :
Specify pipe size and figure number.
| Cat.No. | Service Pipe Size | Top Hole Size (A) | C | D | |||
| in | DN | OD(mm) | in | mm | mm | mm | |
| SBPC-250 | 2-1/2 | 65 | 76 | 1/2 | M12 | 122 | 138 |
| SBPC -300 | 3 | 80 | 89 | 1/2 | M12 | 136 | 152 |
| SBPC -400 | 4 | 100 | 114 | 1/2 | M12 | 178 | 185 |
| SBPC -600 | 6 | 150 | 169 | 3/4 | M20 | 232 | 245 |
| SBPC -800 | 8 | 200 | 219 | 3/4 | M20 | 284 | 295 |
| SBPC -1000 | 10 | 250 | 273 | 3/4 | M20 | 348 | 349 |
| SBPC-1200 | 12 | 300 | 324 | 3/4 | M20 | 398 | 399 |
