Detail
General Application :

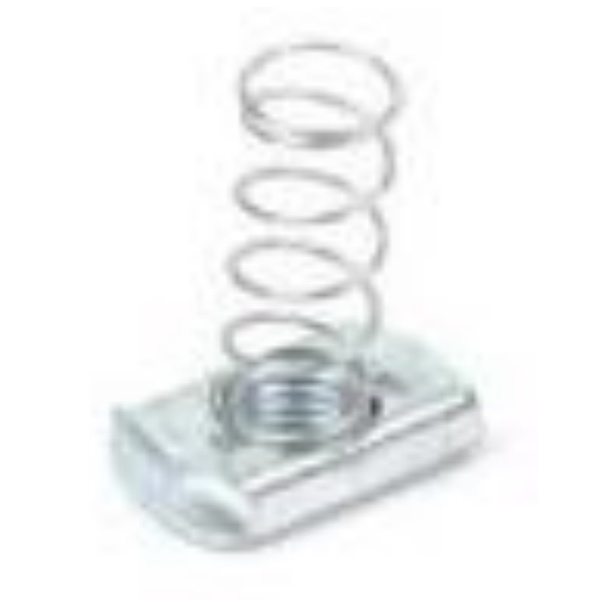

Channel Nuts allow contractors to securely place a fitting, junction box, electrical panel, or pipe clamp in a
precise location along the entire length of the channel. Simply insert the channel nut into the trough of the
channel, and twist the nut into position so that the grooves are aligned with the internal edges of the strut.
Threading and tightening a screw into the hole causes teeth located in the grooves to bite into the channel
edge, positively locking the nut in place so it can’t slip.
Materials :
Low Carbon Steel SS304
SS316
Standard Finishes :
Zinc Plated
Hot Dip Galvanized
UNC Thread
| Thread Size | Specifciation( mm) | Thick | |
| Length | Width | mm | |
| 1/4-20 | 34 .5 | 19 | 6 .0 |
| 5/ 16-18 | 34 .5 | 19 | 6 .0/8 .0 |
| 3/8-16 | 34 .5 | 19 | 8 .0/9 .0 |
| 7/ 16-14 | 34 .5 | 19 | 8 .0/9 .0 |
| 1/2-13 | 34 .5 | 19 | 9 .0/ 11 .0 |
| 5/8-11 | 34 .5 | 30 | 11 .0 |
| 3/4-10 | 34 .5 | 30 | 11 .0 |
| 7/8-9 | 34 .5 | 30 | 11 .0 |
Metric Thread
| Thread Size | Specifciation( mm) | Thick | |
| Length | Width | mm | |
| M6 | 34 .5 | 19 | 6 .0 |
| M8 | 34 .5 | 19 | 6 .0/8 .0 |
| M10 | 34 .5 | 19 | 8 .0/9 .0 |
| M12 | 34 .5 | 19 | 9 .0/ 11 .0 |
| M14 | 34 .5 | 19 | 11 .0 |
| M16 | 34 .5 | 30 | 11 .0 |
| M18 | 34 .5 | 30 | 11 .0 |
