Overview:
A type of fastener consisting of a head and a screw (a cylinder with an external thread), which needs to be matched with a nut to fasten and connect two parts with through holes.
Keywords:
Detail
DETAILS DESCRIPTION

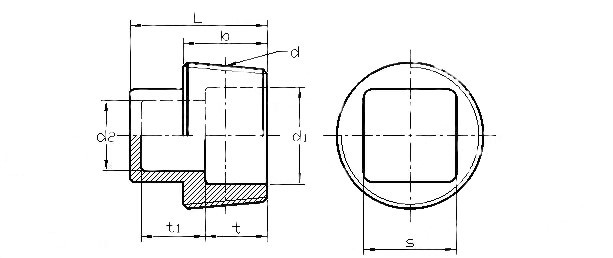

Unit: mm
|
Size d |
S |
L |
t |
t1 |
d2 |
d1 |
b |
Weight of per 1000 pcs ≈ kg |
|
|
max |
min |
||||||||
|
R 1/8 |
8 |
7.1 |
14 |
/ |
/ |
/ |
/ |
10 |
5 |
|
R 1/4 |
10 |
9.1 |
20 |
/ |
/ |
/ |
/ |
14 |
14 |
|
R 3/8 |
10 |
9.1 |
20 |
/ |
/ |
/ |
/ |
14 |
19 |
|
R 1/2 |
14 |
13 |
25 |
/ |
/ |
/ |
/ |
17 |
41 |
|
R 3/4 |
17 |
16 |
29 |
12 |
/ |
/ |
16 |
20 |
61 |
|
R 1 |
19 |
17.7 |
33 |
12 |
/ |
/ |
20 |
20 |
109 |
|
R 1-1/4 |
22 |
20.7 |
36 |
16 |
10 |
10 |
26 |
24 |
175 |
|
R 1-1/2 |
27 |
25.7 |
40 |
16 |
16 |
14 |
32 |
24 |
237 |
|
R 2 |
32 |
30.4 |
42 |
20 |
16 |
16 |
42 |
27 |
399 |
|
R 2-1/2 |
36 |
34.4 |
46 |
20 |
18 |
16 |
52 |
30 |
743 |
