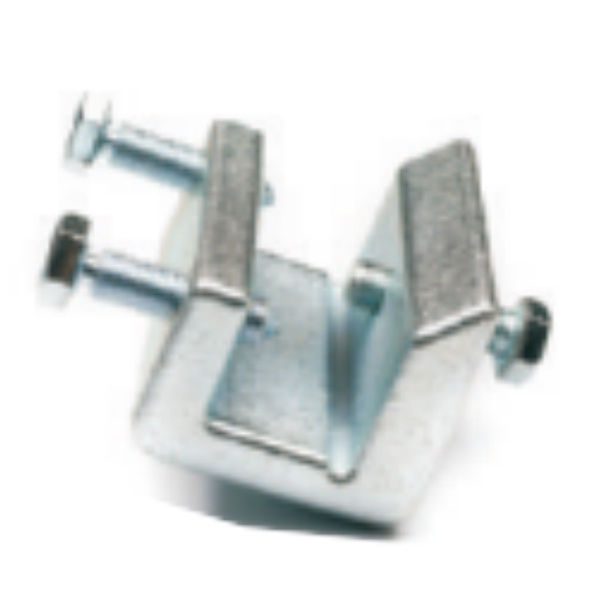

Seismic Sway Brace Structural Adapter
Detail
Material: Ductile Iron with Carbon Steel Hardware - Zinc Plated
Application: Designed for attach a sway brace assembly to a steel structural member of 3/8” minimum and 1¼”maximum thickness. To provide a point of connection when drilling or welding is not allowed or not practical.
Installation: Place on structural member with the flange contacting the back of the jaw. Tighten set screws finger tight, then evenly tighten until hex heads break off. Attach structural attachment to with the supplied attachment bolt, ensuring that the attachment bolt head bottoms out securely. Please note that the maximum load will be limited by the structural attachment utilized with this adapter.
Ordering: Specify figure number.
|
Cat. No. |
M12 Hex Bolt Type |
Open Size |
Bracing Structural Steel |
Service Pipe Size |
||
|
Shear off bolt |
Mounting bolt |
in |
mm |
in |
in |
|
|
SSBSA |
2pcs |
1pcs |
1-1/4 |
31.75 |
3/8 ~ 1-1/4 |
2 ~ 8 |
