Overview:
Designed for attaching sway brace assembly to a steel bar joist structural member of 3/8” maximum thickness. To provide a point of connection when drilling or welding is not allowed or impractical.
Keywords:

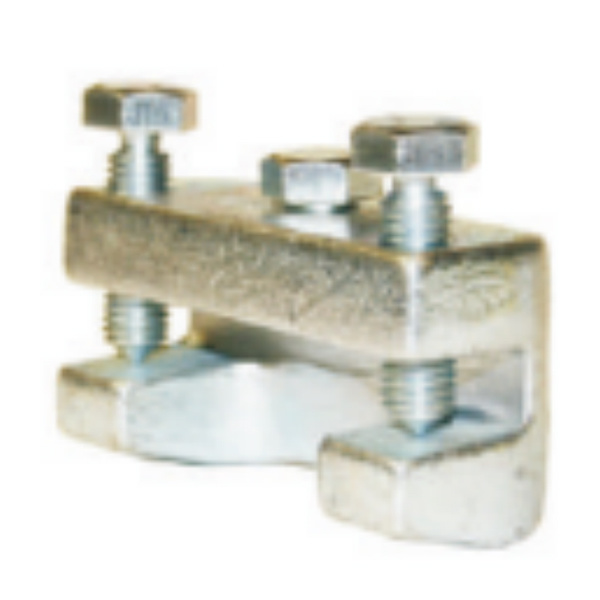

Seismic Sway Brace Bar Joist Adapter
Detail
Material: Ductile Iron with Carbon Steel Hardware - Zinc Plated
Application: Designed for attaching sway brace assembly to a steel bar joist structural member of 3/8” maximum thickness. To provide a point of connection when drilling or welding is not allowed or impractical.
Installation: Steel bar joist manufacturer's warranty requires attachment within 6" of chord panel point. Place on structural member with the flange contacting the back of the jaw.Tighten set screws finger tight, then evenly tighten until hex head breaks off.
Ordering: Specify figure number.
|
Cat. No. |
M12 |
Open Size |
Bracing |
Service Pipe Size |
||
|
Shear off bolt |
Mounting bolt |
in |
mm |
in |
in |
|
|
SSBBA |
2pcs |
1pcs |
1/2 |
12.5 |
3/8 maximum |
2 ~ 8 |
